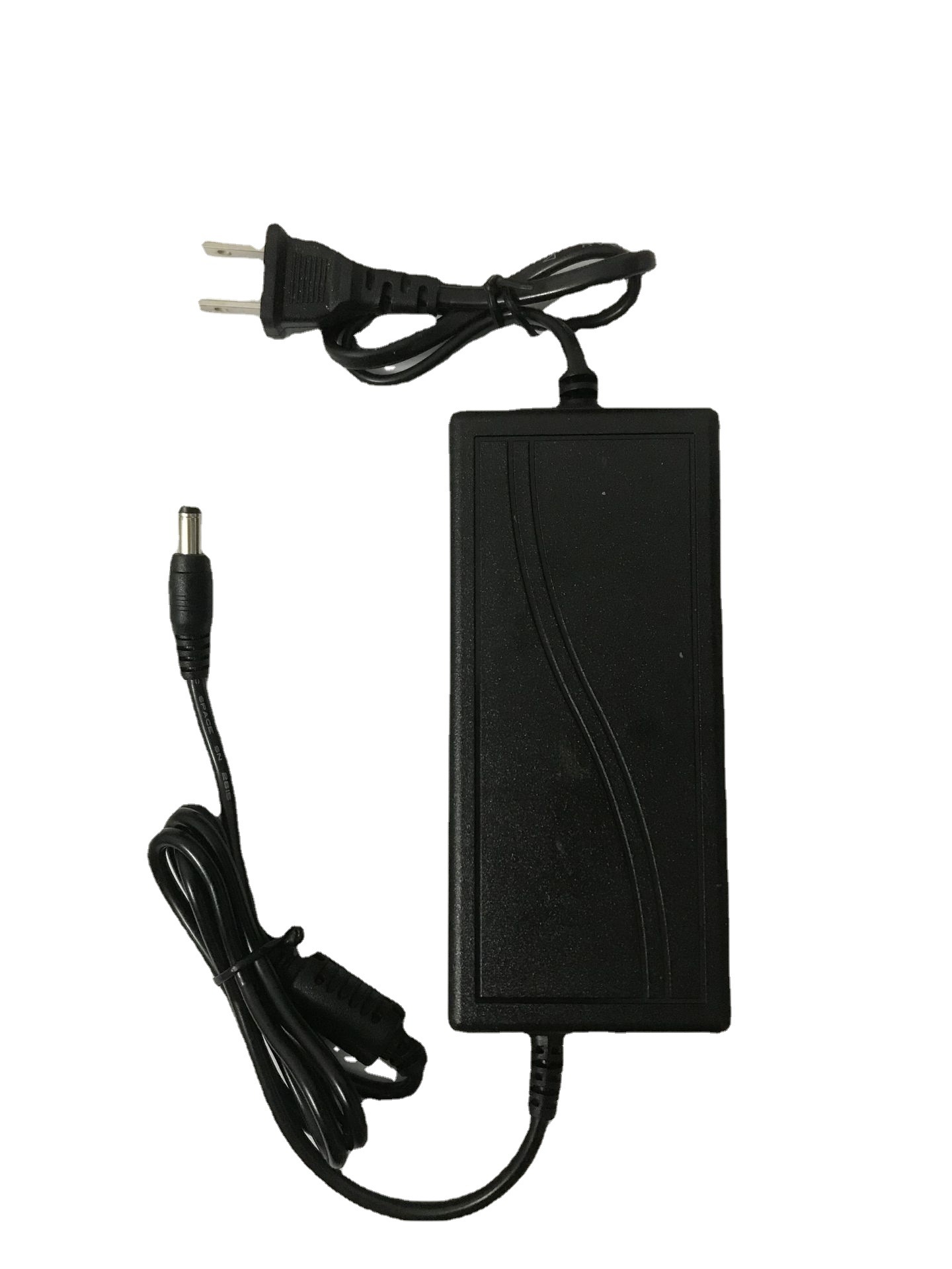

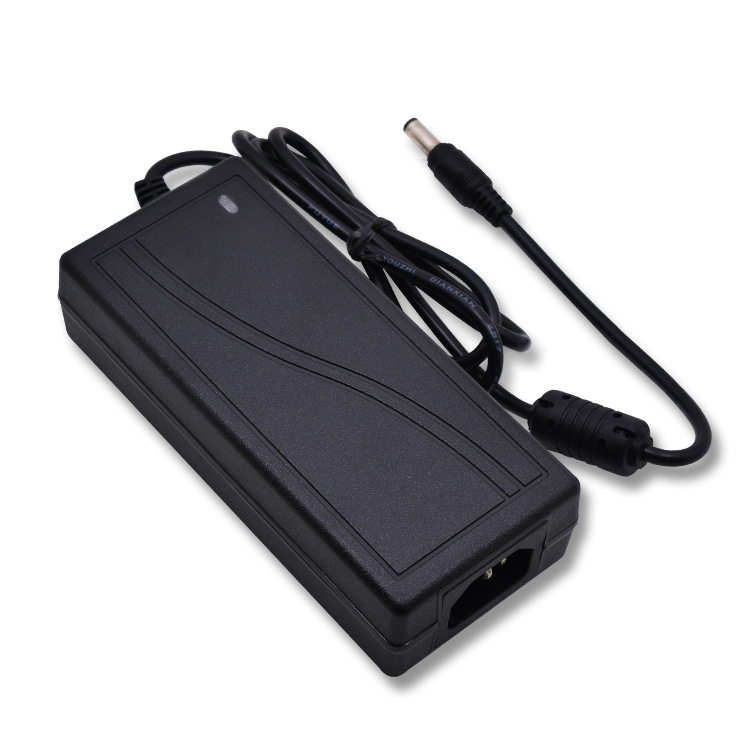

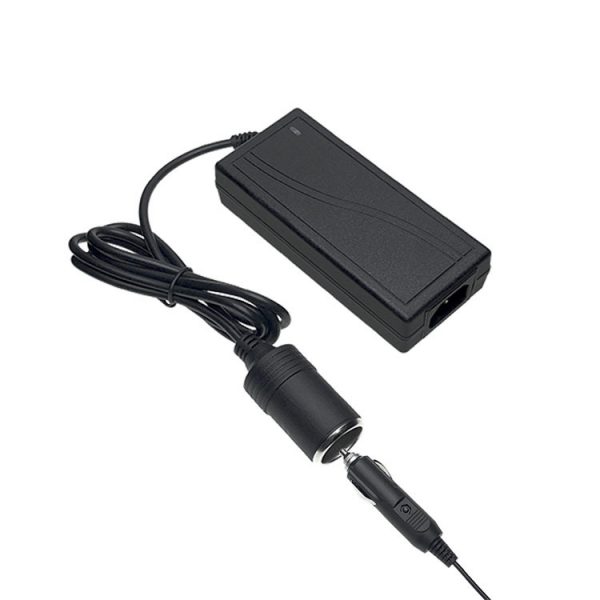

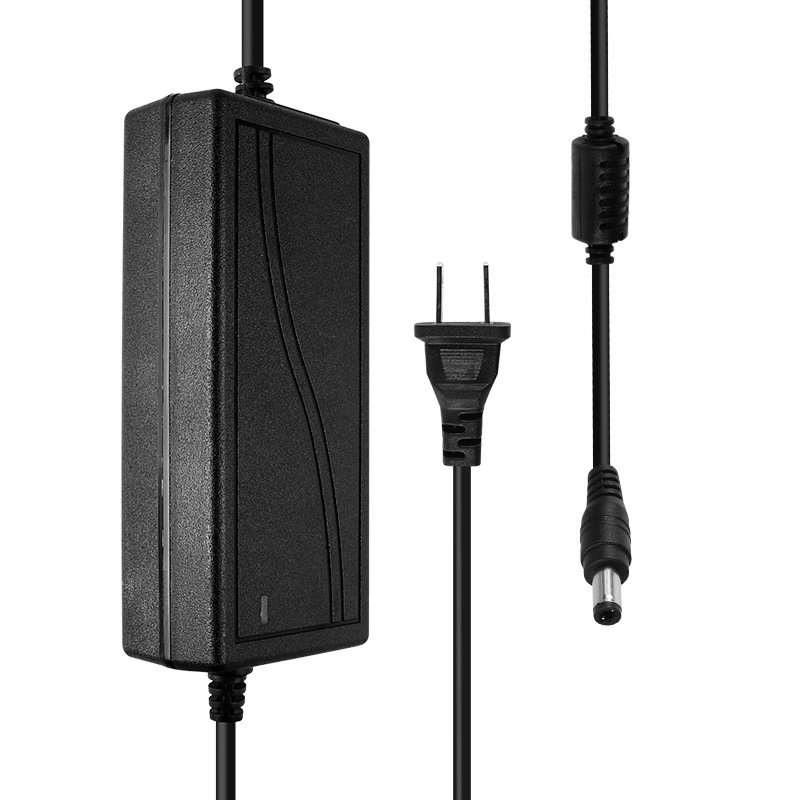

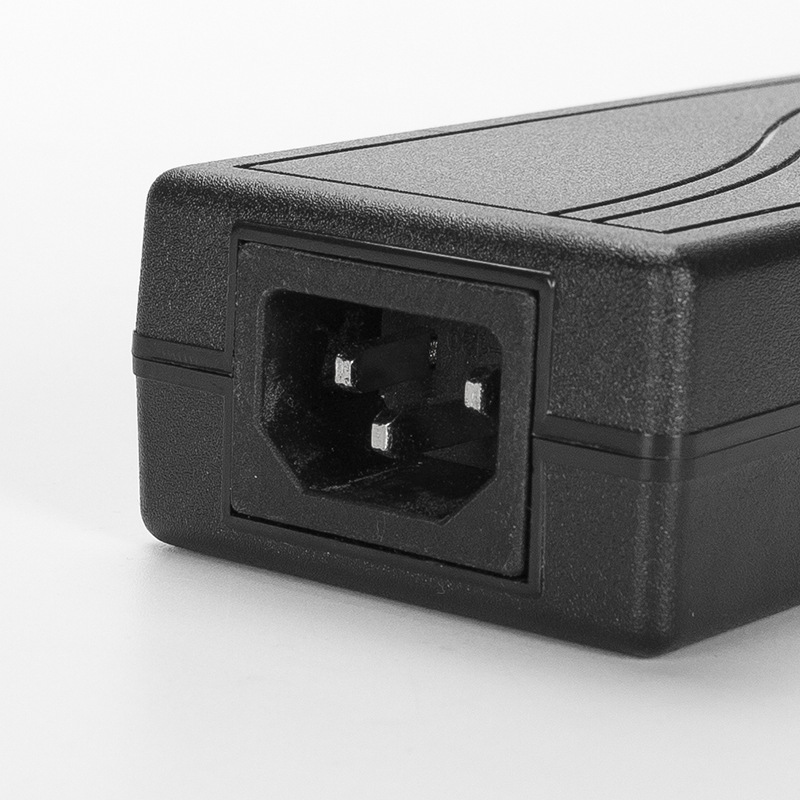

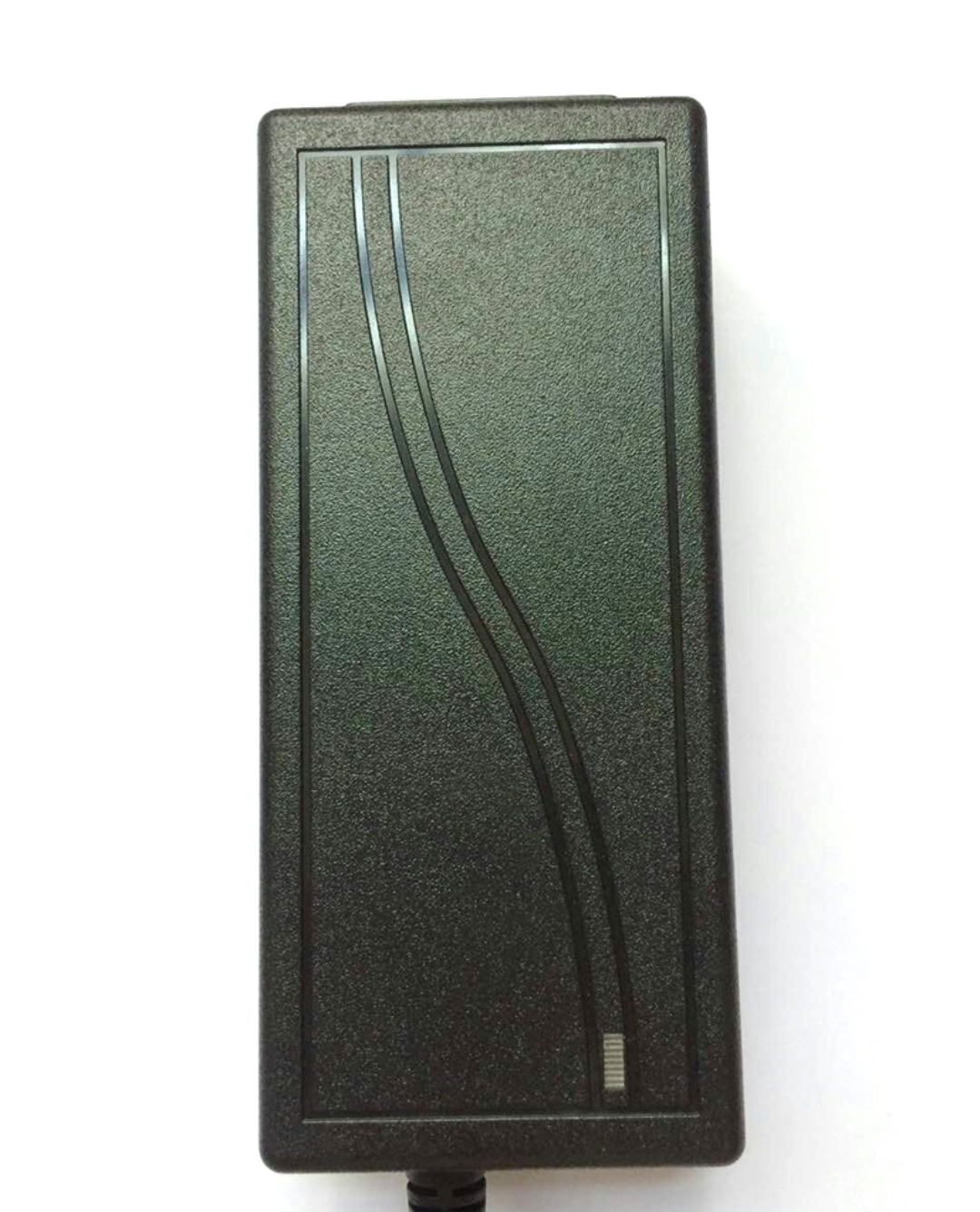

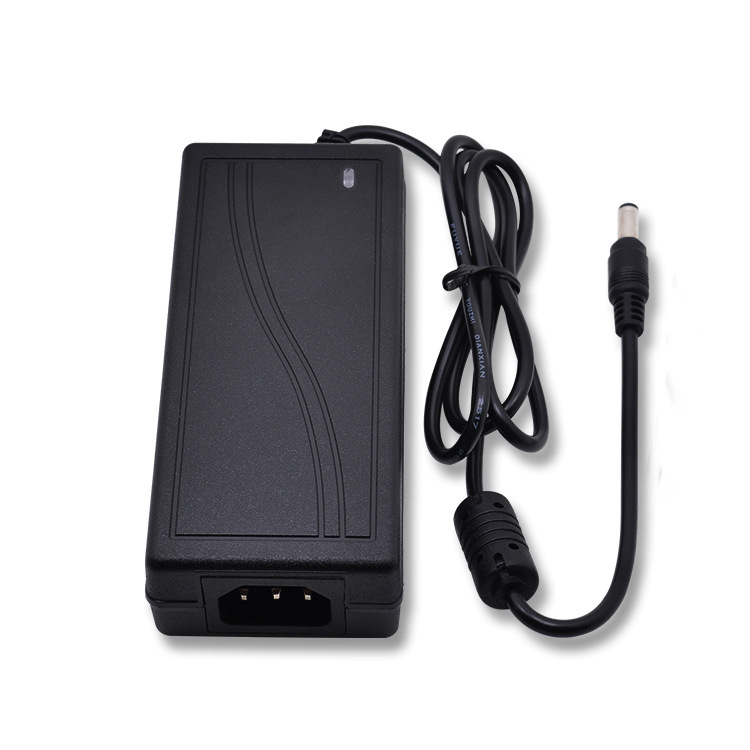

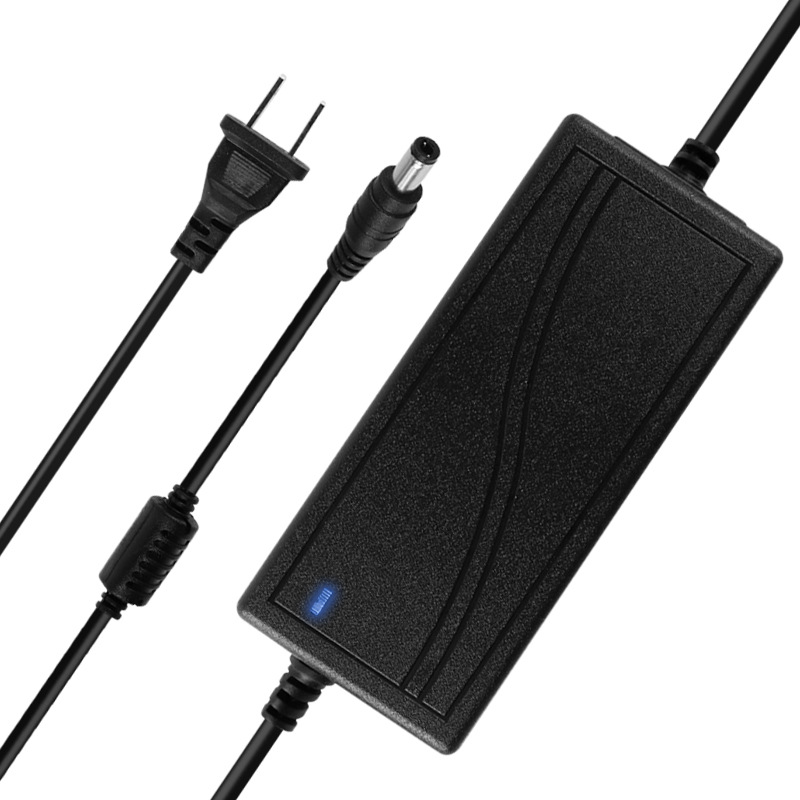

Power adapter
CN, US, EU, KR AR AU BR UK IN JP RS
72w 84w 96w
24V3A 24V4A 12V6A 12V7A 12V8A Power adapter
DC Output | 12V6A/24V3A |
Certificaiton | CE FCC |
line Regulation | ±5.0% |
IP | 20 |
Efficiency | >85% |
AC input voltage range | 100-240V |
AC inrush current | cold-start current 50A/240V(at 25°c) |
safety standards | design refer to UL60950;EN60950 |
Working Temp | -10°c~50°c |
MTBF | ≥50K at full load and 25°c |
1.Over-voltage protection: 120%min
2.Over-current protection: 120%min
3.Short-circuit protection: automatic recovery
4.over load protection
5.Load regulation: ±5%
1. Range voltage: AC 90-264V 47/63HZ
2. High efficiency and low operation temperature
3. AC input power suitable for the world
4. Soft-start current can reduce the AC input impact efficiency
5. Compact size ,light weight
6. With short-circuit and overload protection
7.100%full-load burning test
8. Installed with EMI filter ,minimum wave
Suitable product types: 3C digital products, communication equipment, beauty equipment, household appliances, smart home, security electronics, smart wearable equipment, power tools, monitoring equipment
Suitable for electronic equipment: routers, light cats, bolts, cameras, HD players, network cameras, DVR recorders, NVR recorders, digital printers, sweepers, banana machines, digital photo frames, power tools, model airplanes, tablet computers, laptops , hard disk box, LED monitor, network switch, VGA distributor, network extender, cable modem, air purifier, humidifier, electric shaver, electric breast pump, video advertising machine, robot, beauty instrument, educational video machine , game consoles, massagers, fascia guns, cutting machines, air purifiers, smart vacuum cleaners, electric toothbrushes, ultrasonic scalers, light curing machines, IP phones, electronic refrigerators, smart speakers, speakers, optical transceivers, wall mounts Rack, electric heating pad, ventilator, hair removal device, nail machine, live light, mobile hard disk, TV box, LED light, infrared light, desk lamp, LED module light, diving light, tunnel light, fence light group, wall washer , spotlight, slide light, backlight group, mosquito killer, projector, mini washing machine, massage chair, electronic piano, DC fan..
重量 | 0.25 公斤 |
---|---|
尺寸 | 12.6 × 5.6 × 3.2 厘米 |
